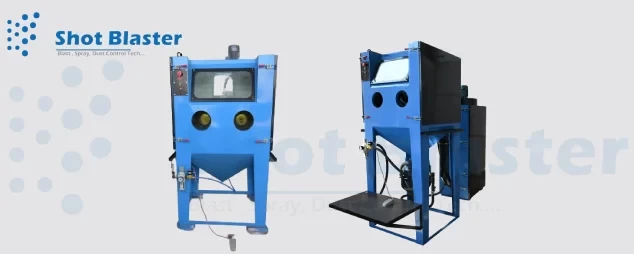

Abrasive Blasting Machine

Availability : In Stock
₹ 4- 80Lakhs
Key Specifications
Material
Mild Steel
Grade
Automatic, Semi-Automatic, Manual
Power
12.5hp
Voltage
440V
Frequency
50Hz
Machine Type
External And Internal Abrasive Blasting Machine
Other Information
Color :
As per client requirement
Country of Origin :
Made in India
Brand :
Shot Blaster
Delivery Time :
15-20 Days
Packaging Details :
Polly Pack With Bubble Packing
Description

Abrasive blasting machine are used for cleaning or preparing the surface for a particular process and can be also applied to expand the fatigue life of metals. These are becoming day by day more important to automotive and aerospace manufacturers since the thrust to lighten vehicles means lighter, more compact components should be used.

Abrasive Blasting Machine Manufacturer

Abrasive Blasting Machine are used for improvement and getting ready metal, stone, and alternative surfaces. It's used for cleansing metal elements like casting elements, steel surfaces, significant metal structures, rusty metal elements, etc. It uses abrasives in a sand blasting cabinet to get rid of surface rust, attachment scoria, descaling, uniform, improve, and glossy coating quality of anti-rust chemicals.

In these processes, a stream of abrasive medium with the desired mechanical energy is generated and propelled onto the surface to be treated. The stream of the improvement agent, being a combination of metal shots, maybe a dynamically variable system, involving a focused and spread zone, as discovered by varied studies.

Abrasive blasting is completed employing a blaster (also called portable sand blasting machine). The machine is sometimes moveable and consists of a blasting pot, a nozzle, and a mechanical device. The pressure of the mechanical device is varied as per the need. Every part of the machine has its own role. The dimensions selected for the machine are according to the project which is chosen.

This process can also be completed with the help of blasting nozzle in surroundings that are closed for example blast rooms,  cupboards, or buildings, bridges, tanks, boats, or mobile plants which are open.

It uses a mechanical process for using abrasive media by a centrifugal wheel to get rid of a layer of deposits and impurities from the surface of metal and steel merchandise.

Abrasive blasting machine have an inside chamber for shots and grit blasting purposes and incorporate a blank wheel that endlessly rotates at terribly high speed. We are renowned abrasive blasting system manufacturers who also manufacture various abrasives like steel shots, copper slag, or aluminium oxide which are used on metal components for surface finishing purposes.

Abrasive Blasting Machine Price

We can say that during blasting abrasive particles strikes with a very high speed which ranges from 65-110 m/second in a controlled way, to the fabric thus removing surface contaminants due to abrasive impact. It uses compressed gas for propulsion. The steel shot for cleanup metal frames and welded parts.

Abrasive blasting systems replaced alternative mechanical metal surface preparation processes like cleanup, descaling, paint removal, coating surface preparation, or achieving bound aesthetic goals.

These are having a high degree of repeatability.

Abrasive blasting machine also have a dust collector to block tiny particles, contaminants, dust particles, etc. coming out of the machine into the environment. A dust collector is used to Barr the entry of waste abrasives as well as help the environment from getting polluted. We at steel shots manufacture a very reliable, economical abrasive blasting machine that is wholly dust and pollution-free.

 Factors that can affect Abrasive Blasting :

The initial The state of the part i.e. material and contamination, the velocity of abrasive, size (and shape) of abrasive, hardness of abrasive, revolving speed of labor piece.

Blasting system components:-

1. Delivery of abrasive powder using gravity and pressurized gas

2. PU Nozzles & Pipes

3. Motor System for Maintaining Position

4. Blower and dust collector

Abrasive Blasting Machine Working

The machine door is opened and parts are loaded into the endless rubber belt conveyor of the machine. The rubber conveyor carries the parts and ensures adequate exposure of the parts. The abrasive at a high rate falls upon the parts carried and cleans them.  When the blast cleaning cycle is complete, the blast wheel is shut down and the door opened. The parts square measure blank on the self-propelled vehicle by moving the conveyor in the reverse direction. We also offer shot blasting machine and are continuously raising the bar in the manufacture of abrasive blasting machine, for the standard of the conveyor to make sure it lasts for long-lasting capability.

Abrasive Blasting Machine Uses

Uses of abrasive blasting include in shipbuilding, shipyard, aerospace, maintenance, Iron & steel castings, metal foundry, aluminum casting, forgings, rail, steel fabrication, car paint, alloy wheels cleaning. Also, It can be additionally used to clean floors, roads, and outer walls at construction sites.

Factors that affect the Blasting process:

  • The state of the surface or the metal part that must be cleaned and therefore the contaminants deposited on the surface that require to be removed.
  • Velocity and therefore the abrasive which is used to treat the surface.
  • Working The state of the abrasive blasting machine.
  • Size of the abrasive.
  • Hardness of the material of abrasives.
  • Level of humidity and temperature as exposure of metal surface to the environment makes it at risk of oxidation.

Steel shots is the leading manufacturer of abrasive blasting machine in India and sand blasting equipment supplier.  We also manufacture sand blasting cabinet, pressure blasting cabinet, shot blasting cabinet, Sand Blasting Nozzle, shot blasting room, thermal spray gun, metalizing gun, arc spray gun, zinc spray gun, flame spray gun in Jodhpur, Rajasthan, India at a low price with the best quality for sale. Additionally, we also sell a wide range of different spare parts related to different types of sand blasting machines.

Show More Show Less
Related Products

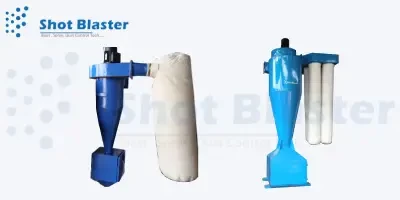

Sand Blasting Dust Collector
